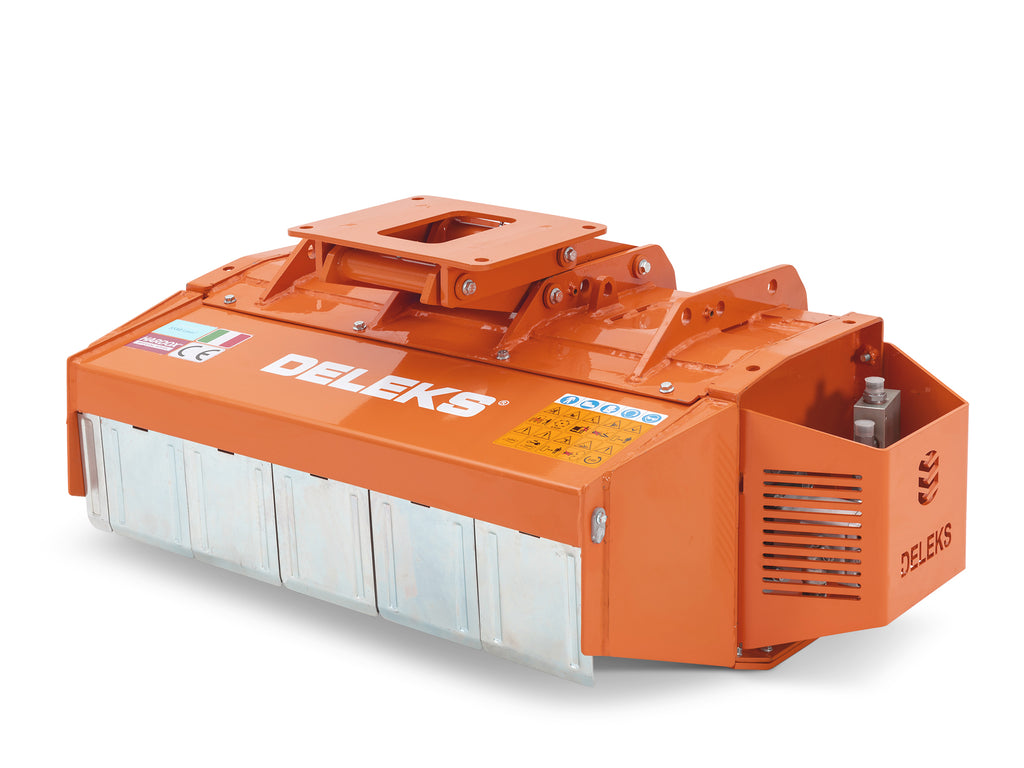

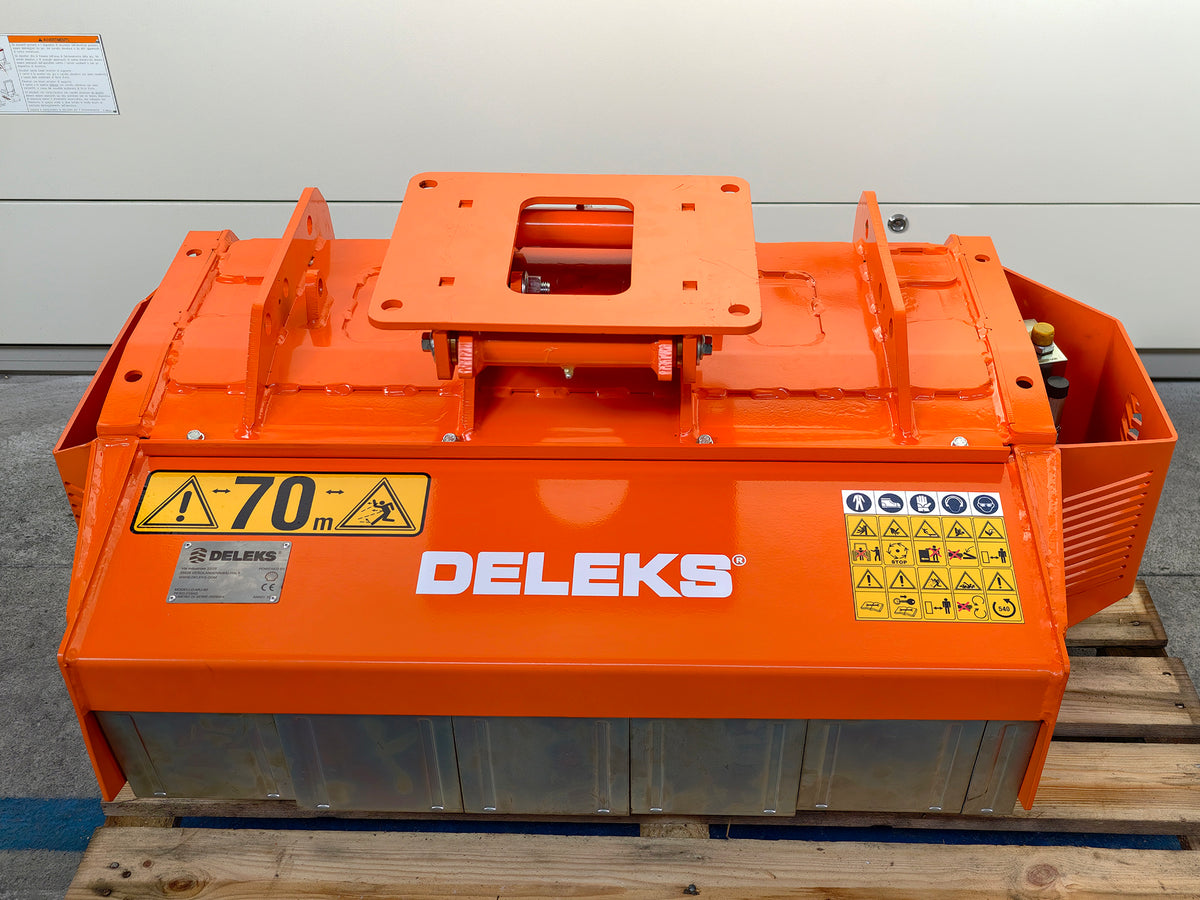

  • DELEKS ARJ hydraulic forestry mulcher for mini excavators, studio view

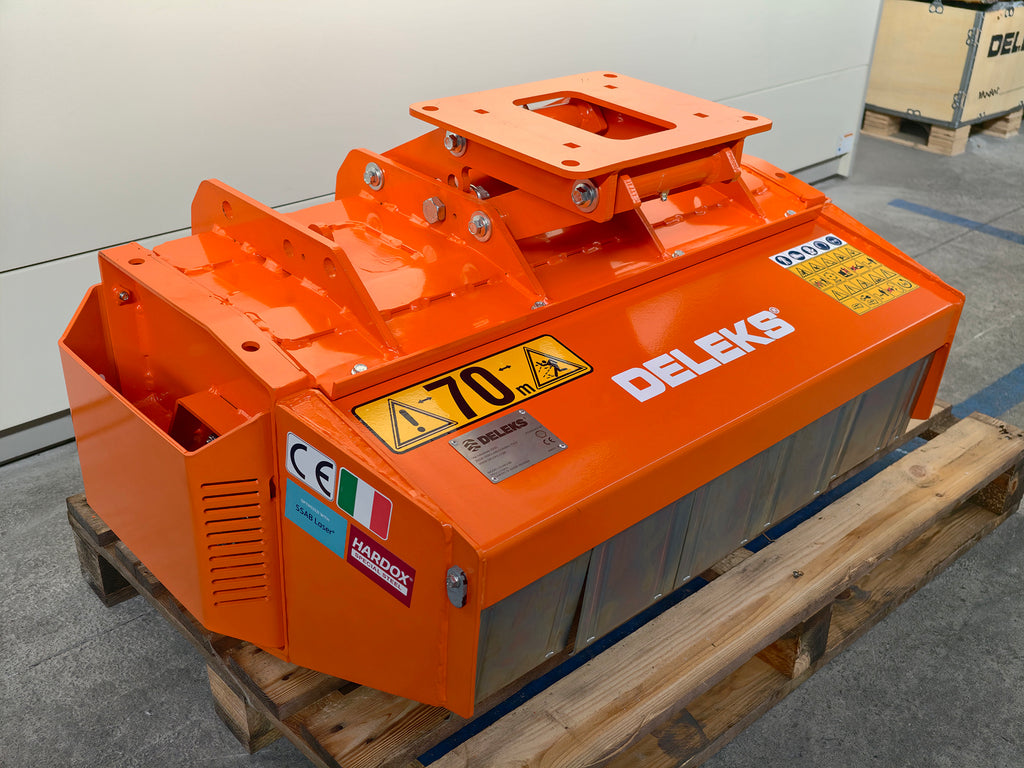

  • DELEKS ARJ mulcher head on a pallet in the warehouse, front view

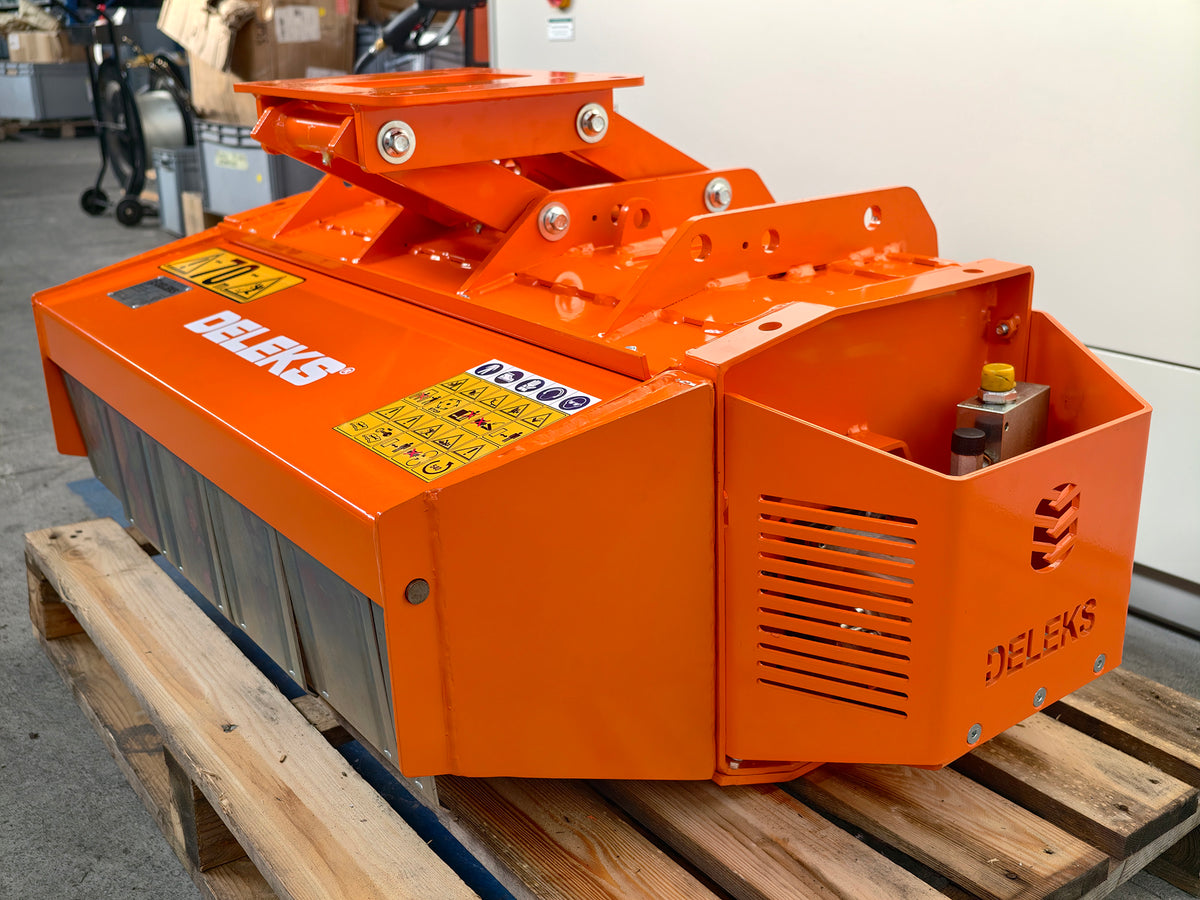

  • DELEKS ARJ forestry mulcher on a pallet, rear three-quarter view

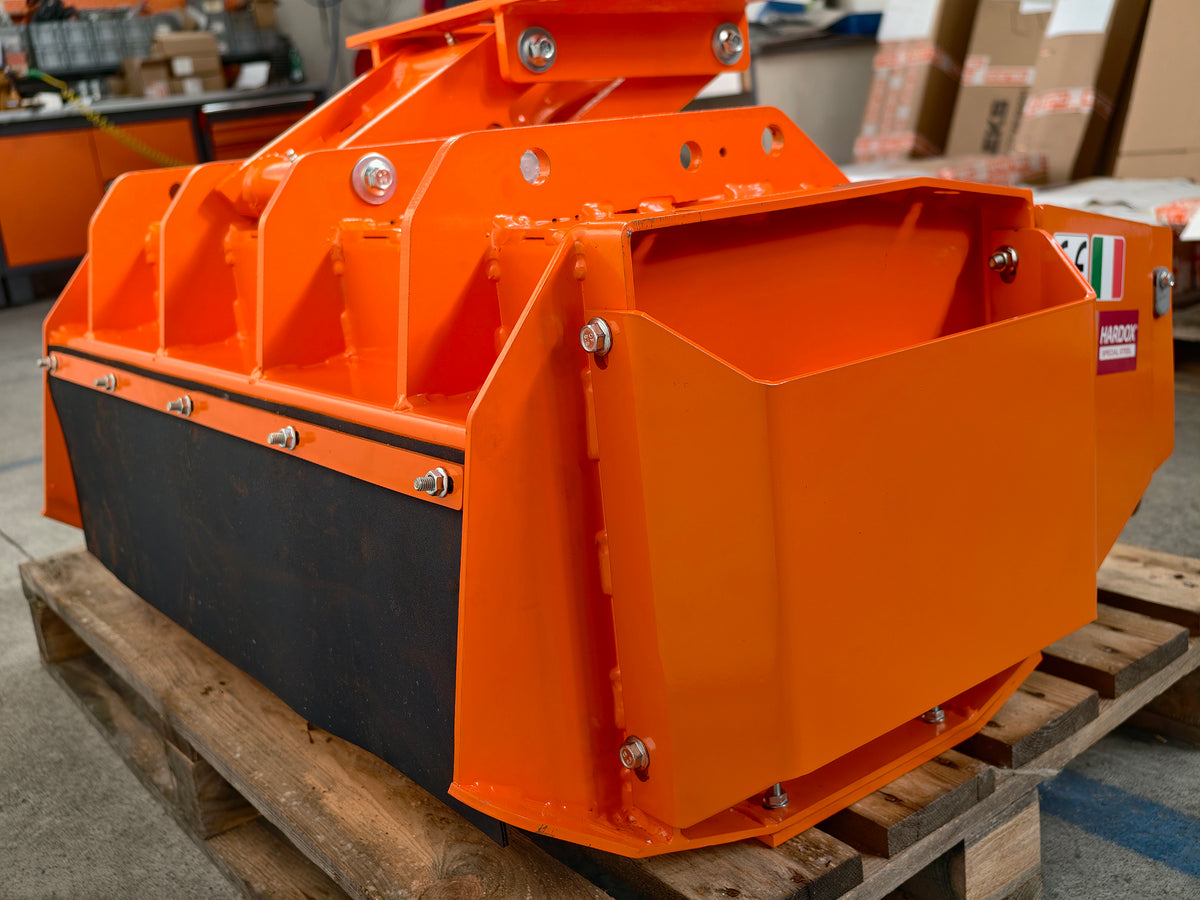

  • Front view of the DELEKS ARJ mulcher with rear roller

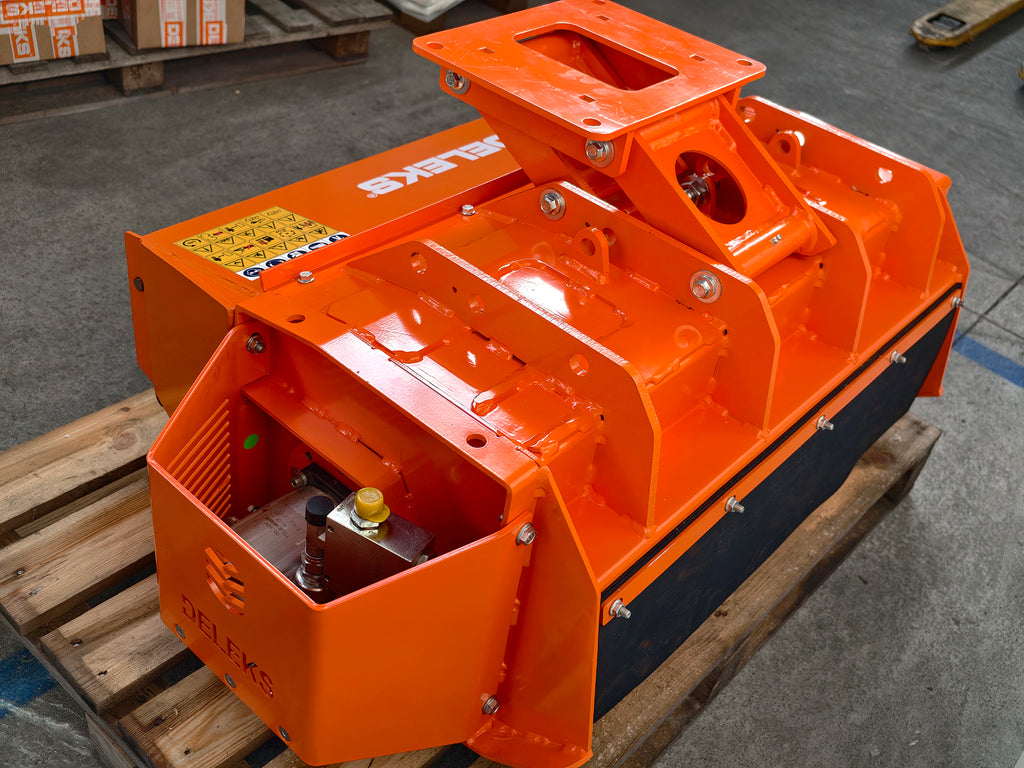

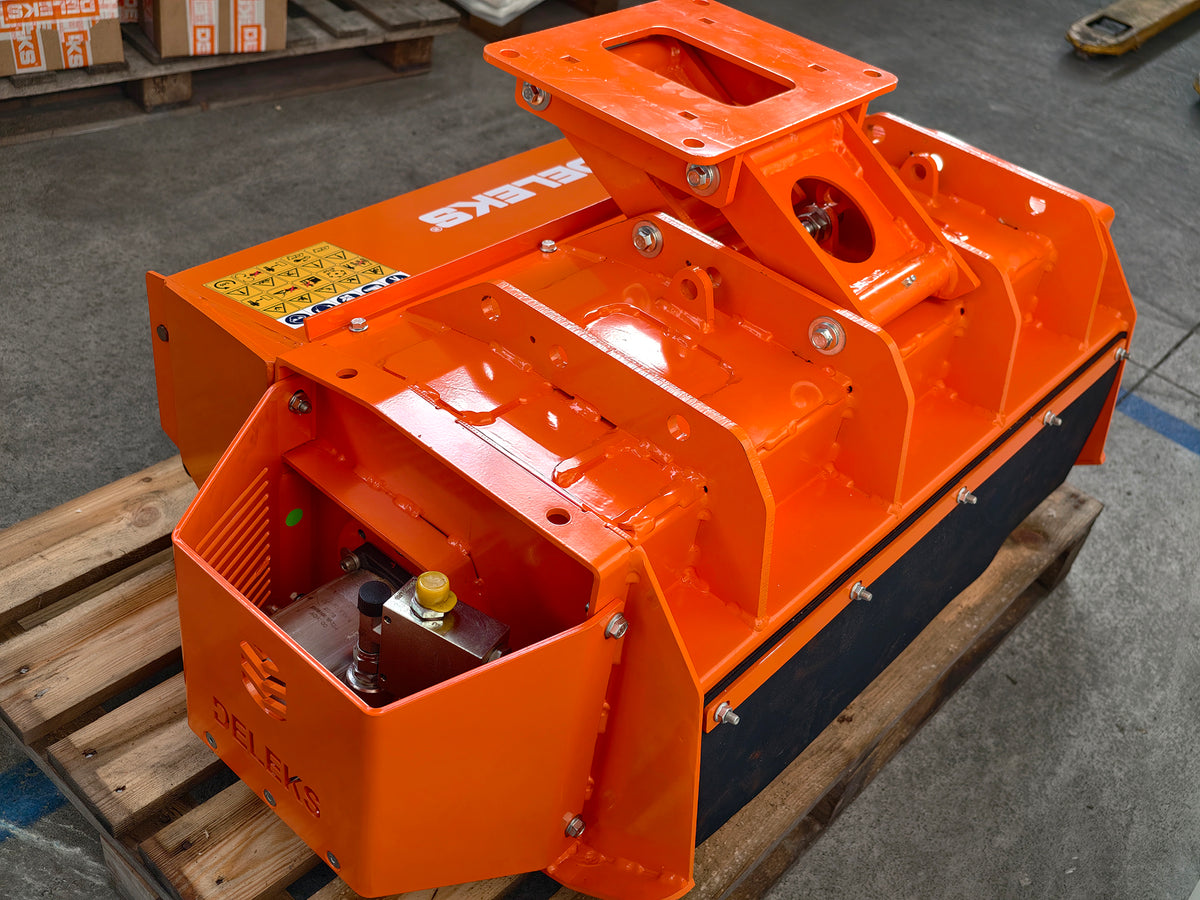

  • Top view of the DELEKS ARJ mulcher showing the mounting plate

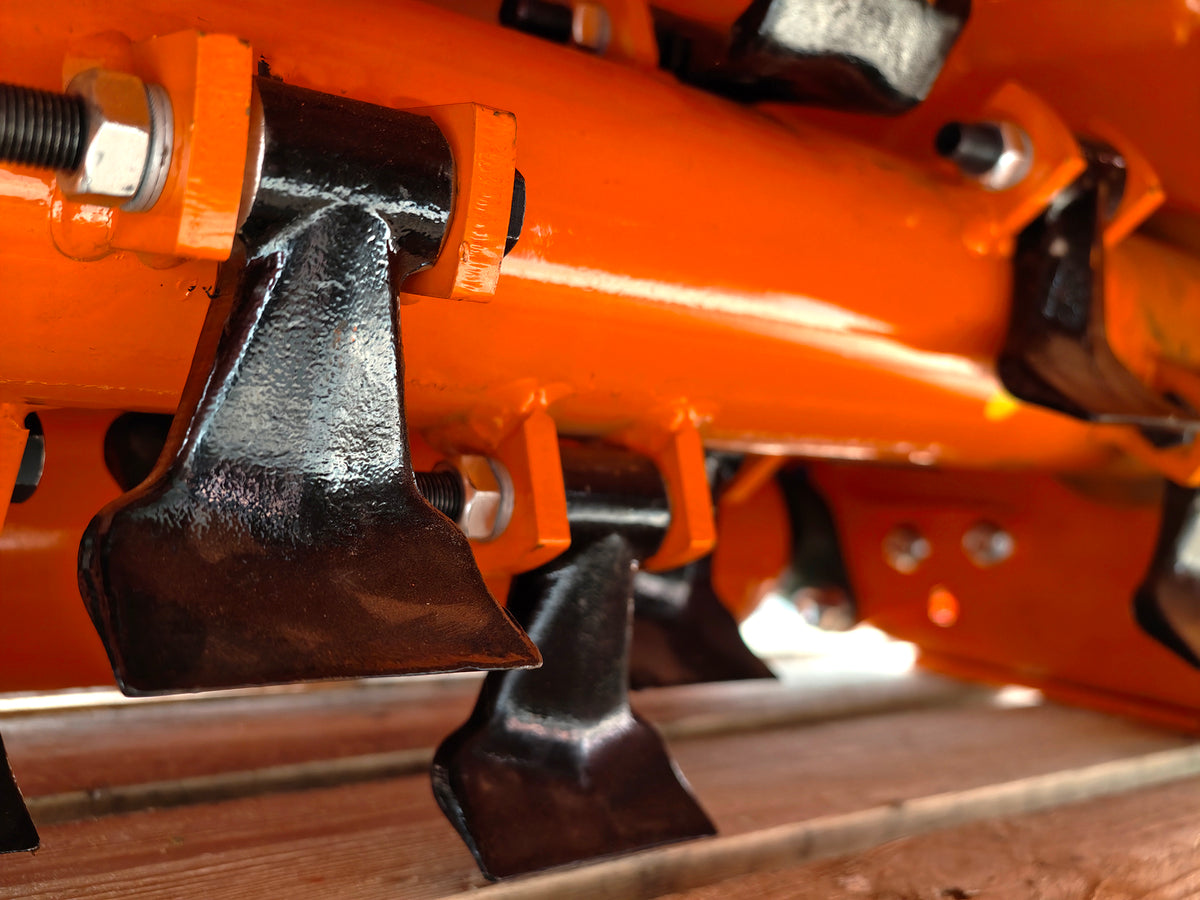

  • Close-up of the rotor and hammers of the DELEKS ARJ mulcher

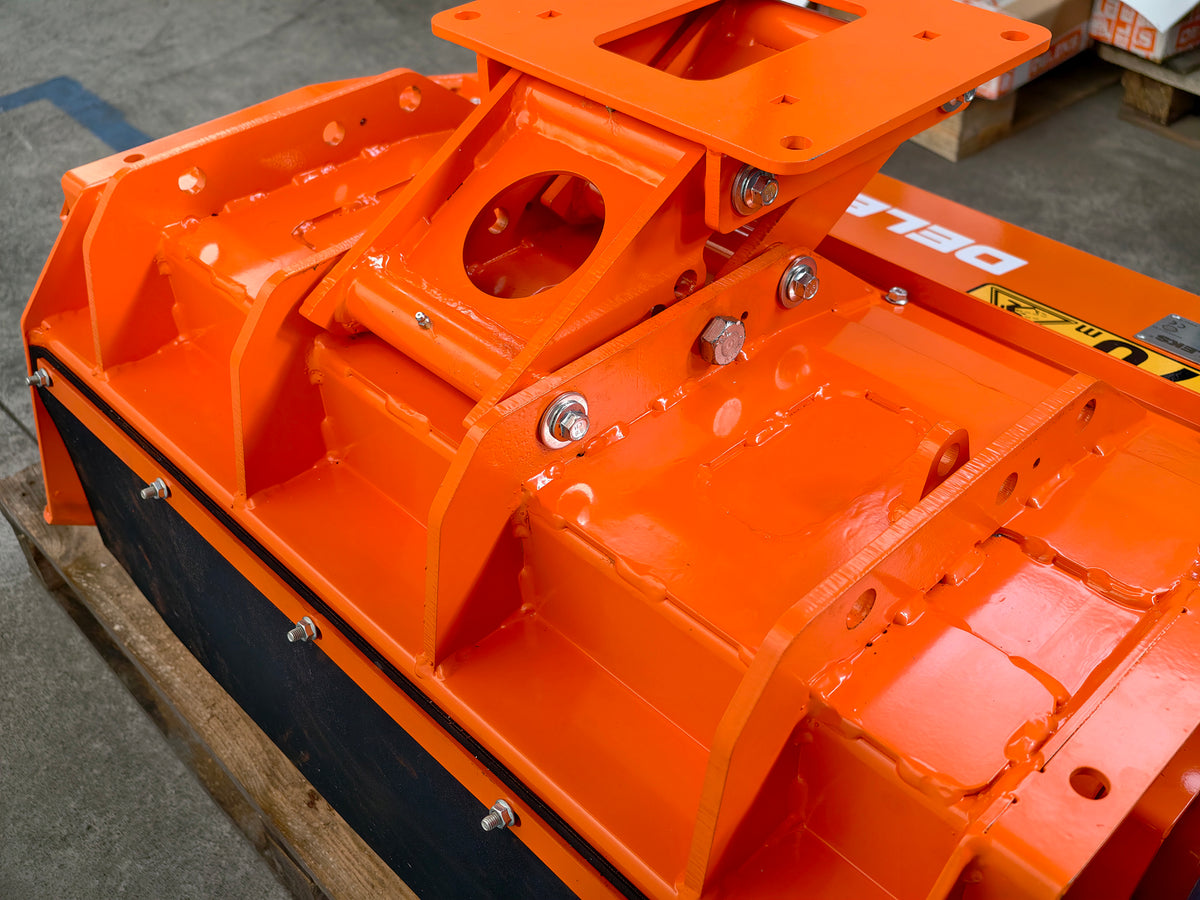

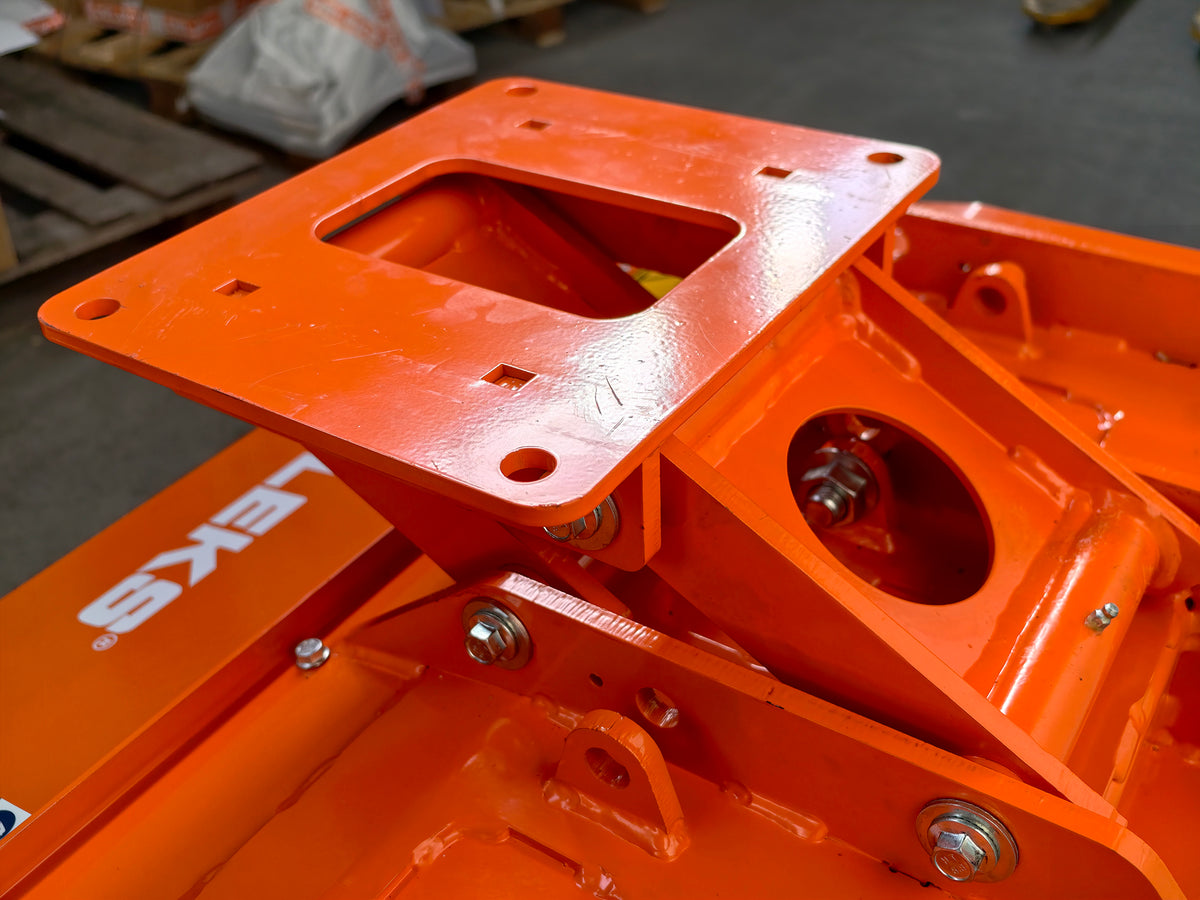

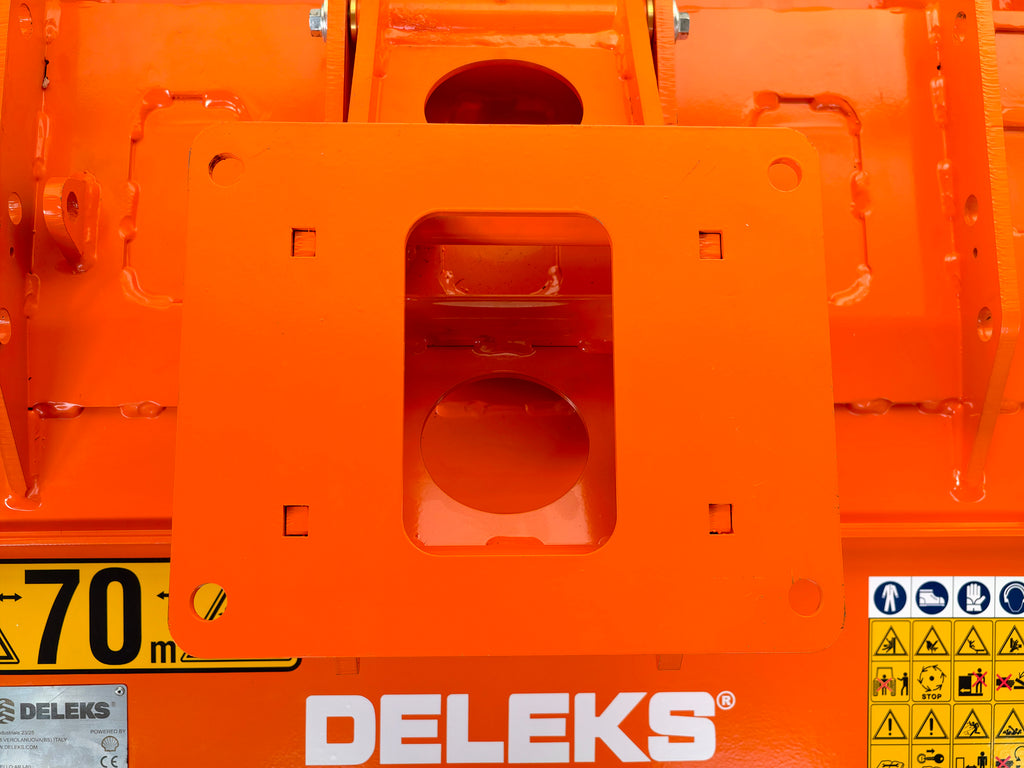

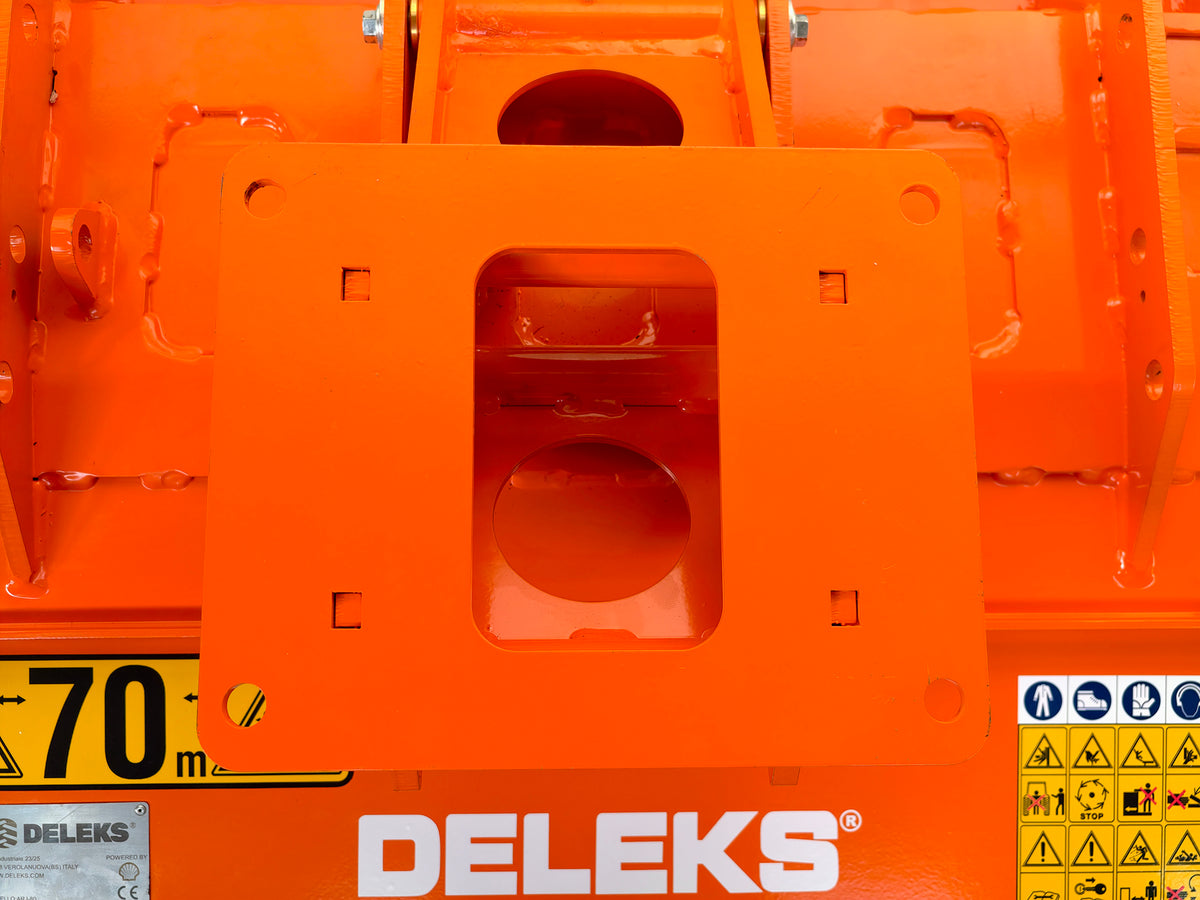

  • Mounting plate of the DELEKS ARJ mulcher for mini excavator arms

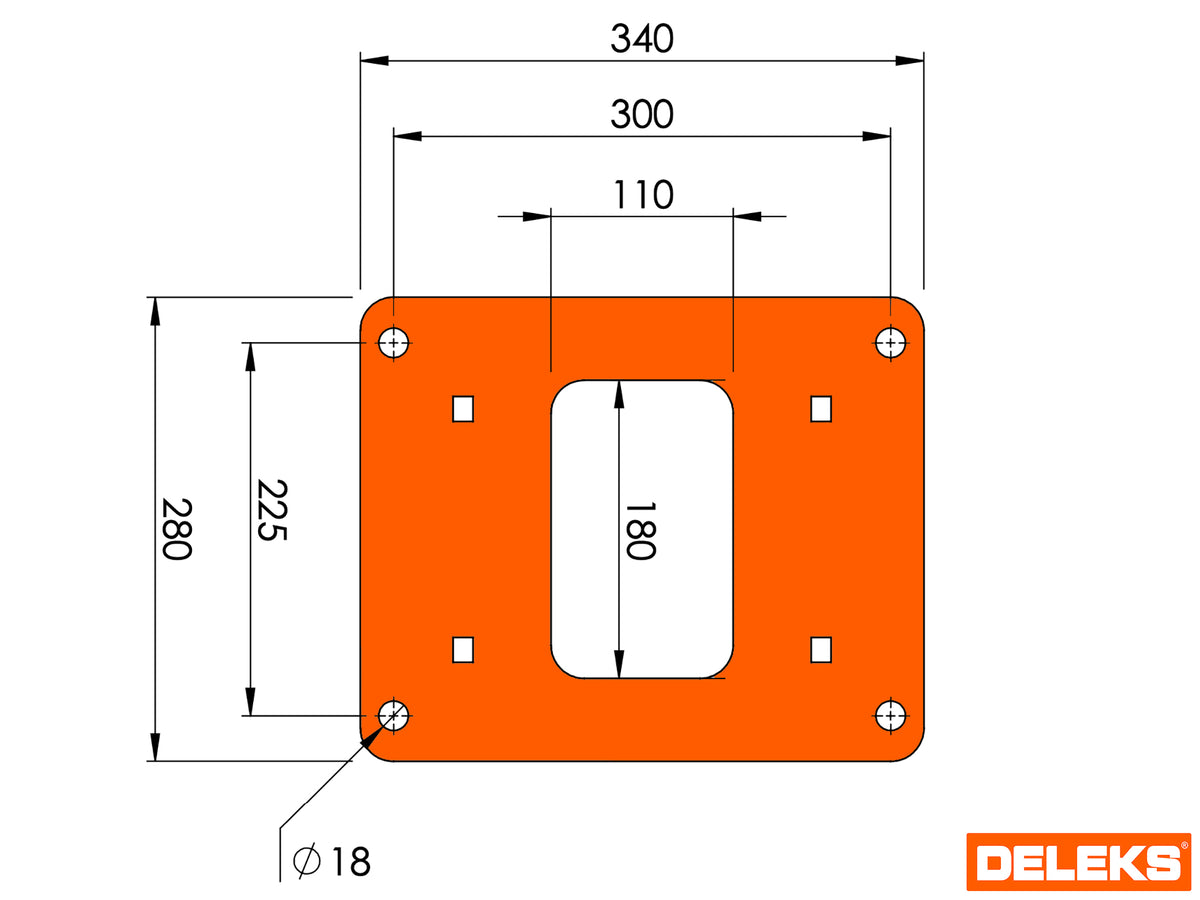

  • Drawing of the DELEKS ARJ mounting plate with bolt pattern dimensions

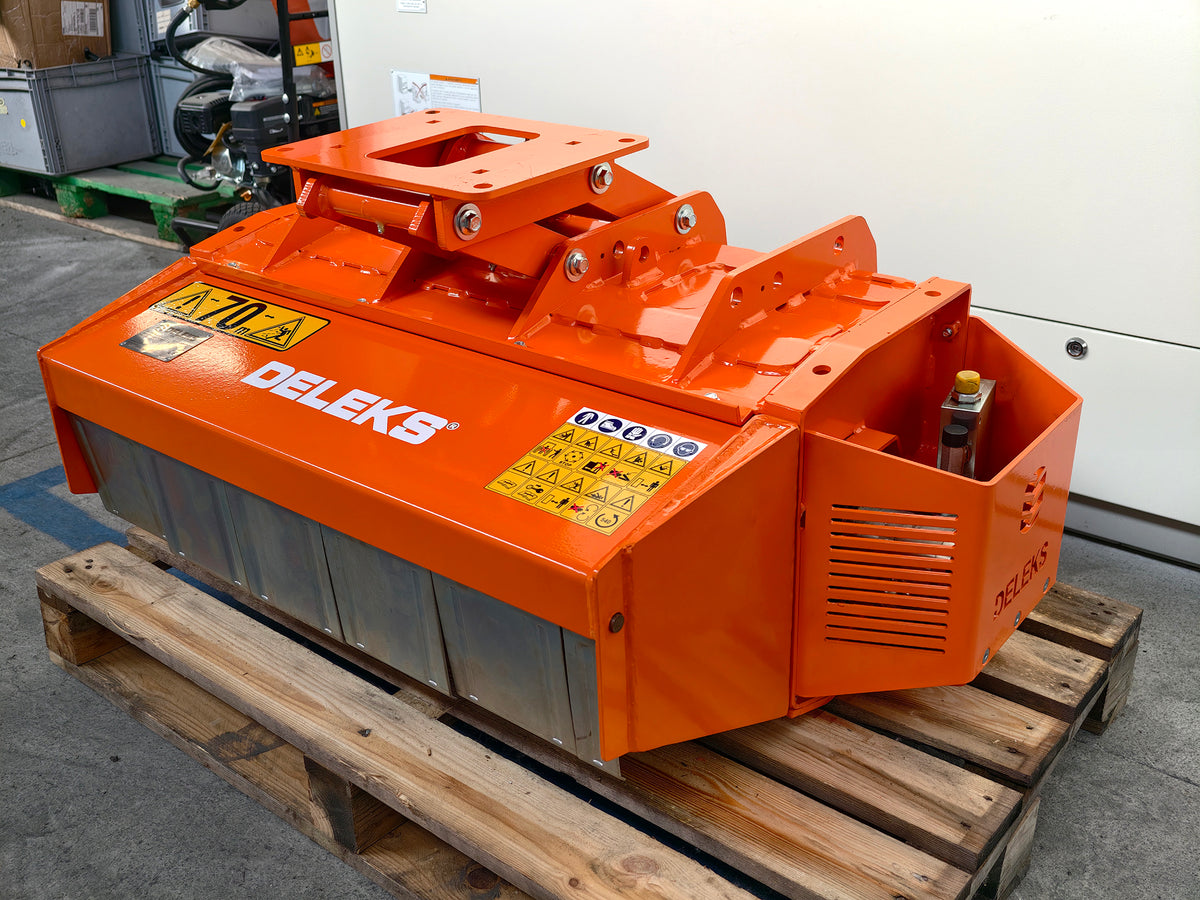

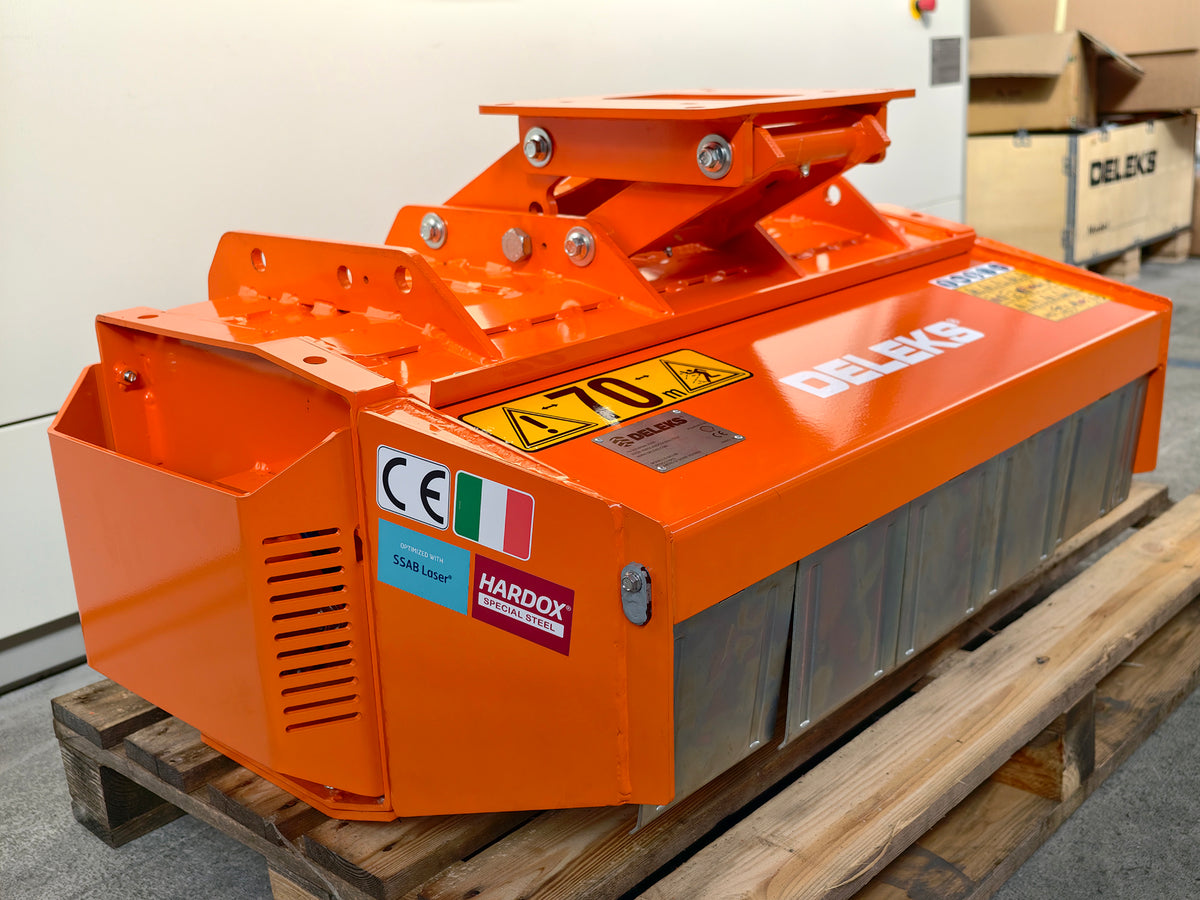

  • DELEKS ARJ mulcher head side view on a pallet

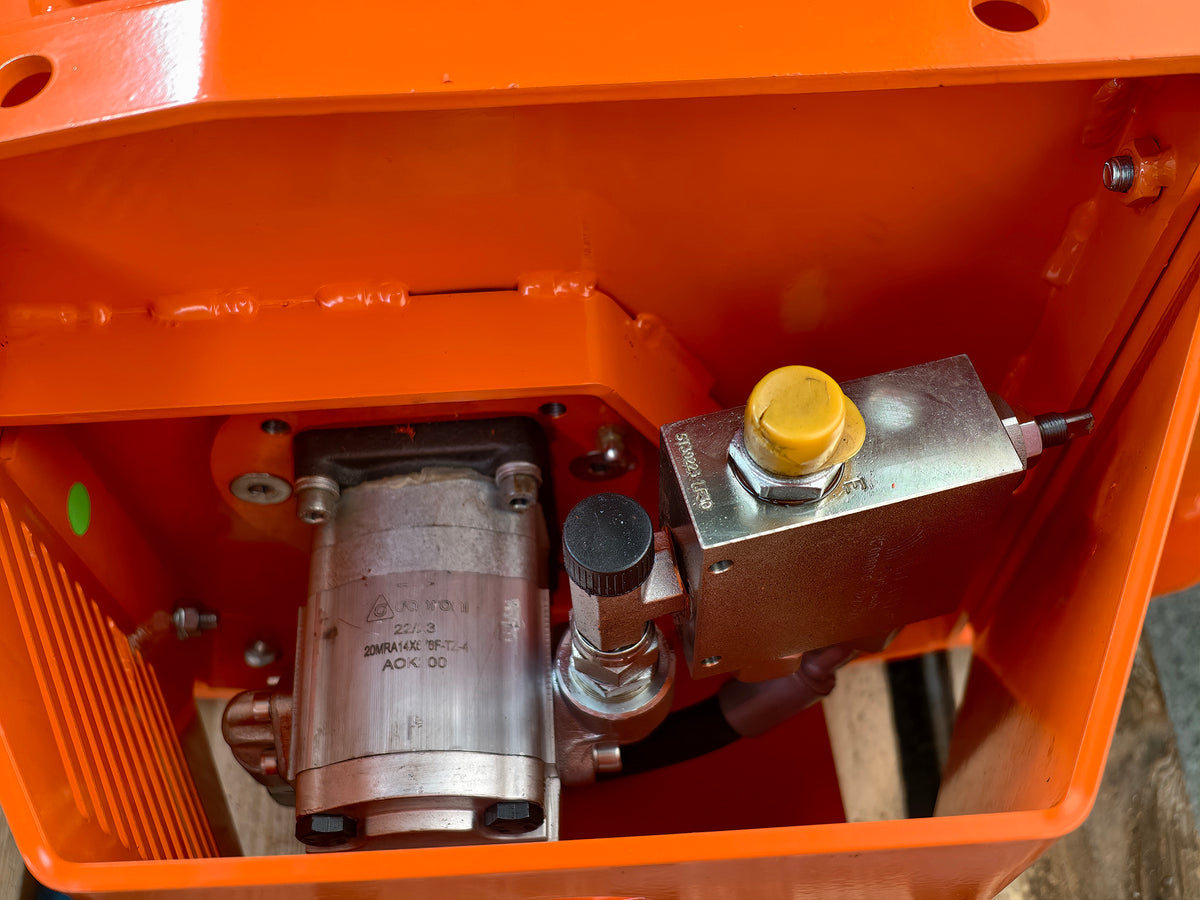

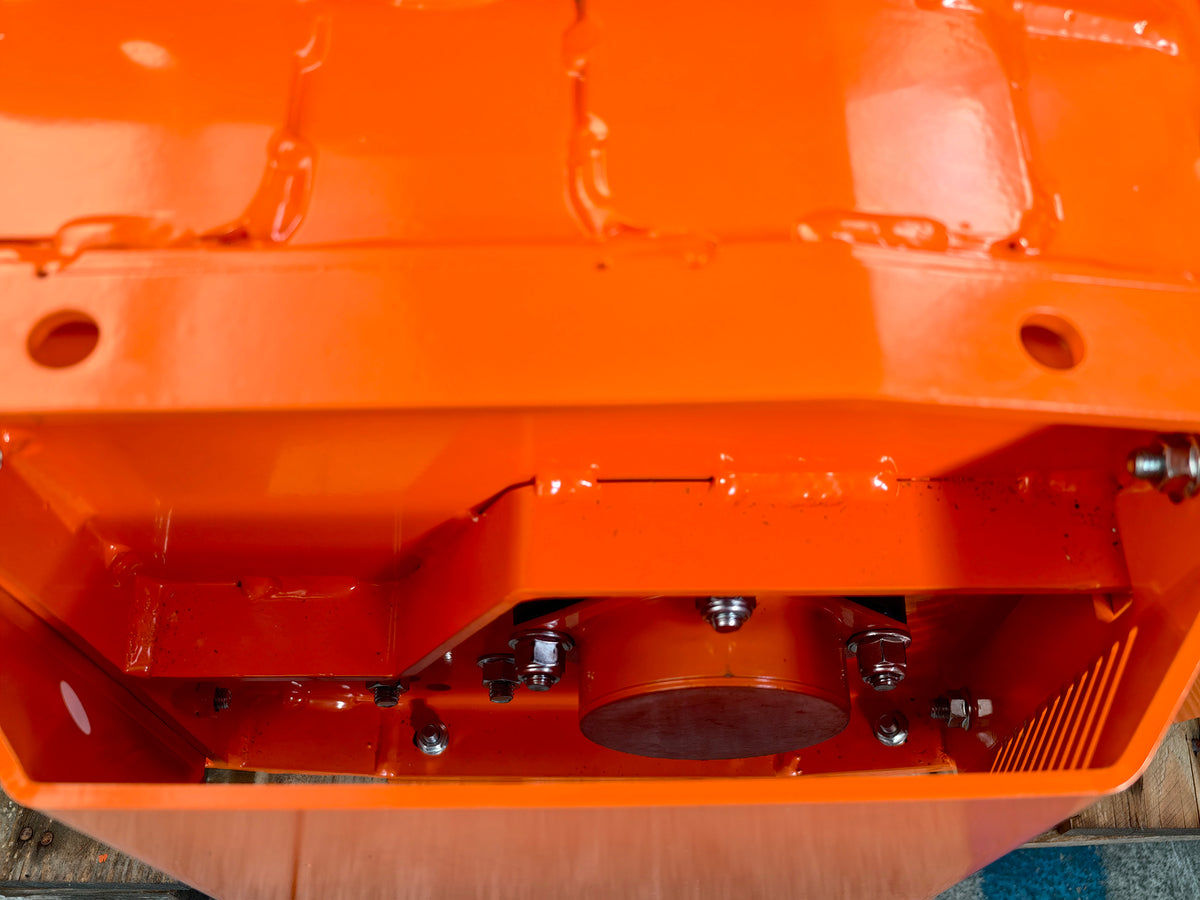

  • Hydraulic motor detail of the DELEKS ARJ forestry mulcher
  • ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®
  • ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®
  • ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®
  • ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®
  • ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®
  • ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®
  • ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®
  • ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®
  • ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®
  • ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®
ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®

MADE IN ITALY

ARJ Hydraulic Forestry Mulcher Attachment for 2–5 Ton Mini Excavators – DELEKS®

$2,437
Free shipping within the US
 1 left
Product description
31" Hydraulic Forestry Mulcher Attachment for Mini Excavators – DELEKS® ARJ-80 (Made in Italy).
Buying directly from the manufacturer means spare parts are always in stock and priced affordably. Check our “Parts” page to see for yourself. Plus, you get direct access to the engineers who designed and built the machines.
Choose a size:
Free shipping
Overview
Applications

The DELEKS® hydraulic forestry mulcher is designed for mini excavators in the 2–5 ton class (4,400–11,000 lbs).

Ideal for clearing:

  • Brush and dense vegetation
  • Grass and shrubs
  • Small trees and branches
  • Ditches, banks, and embankments
Key Specifications
  • Operating weight: 474 lbs
  • Rotor equipped with 12 heavy-duty hammers

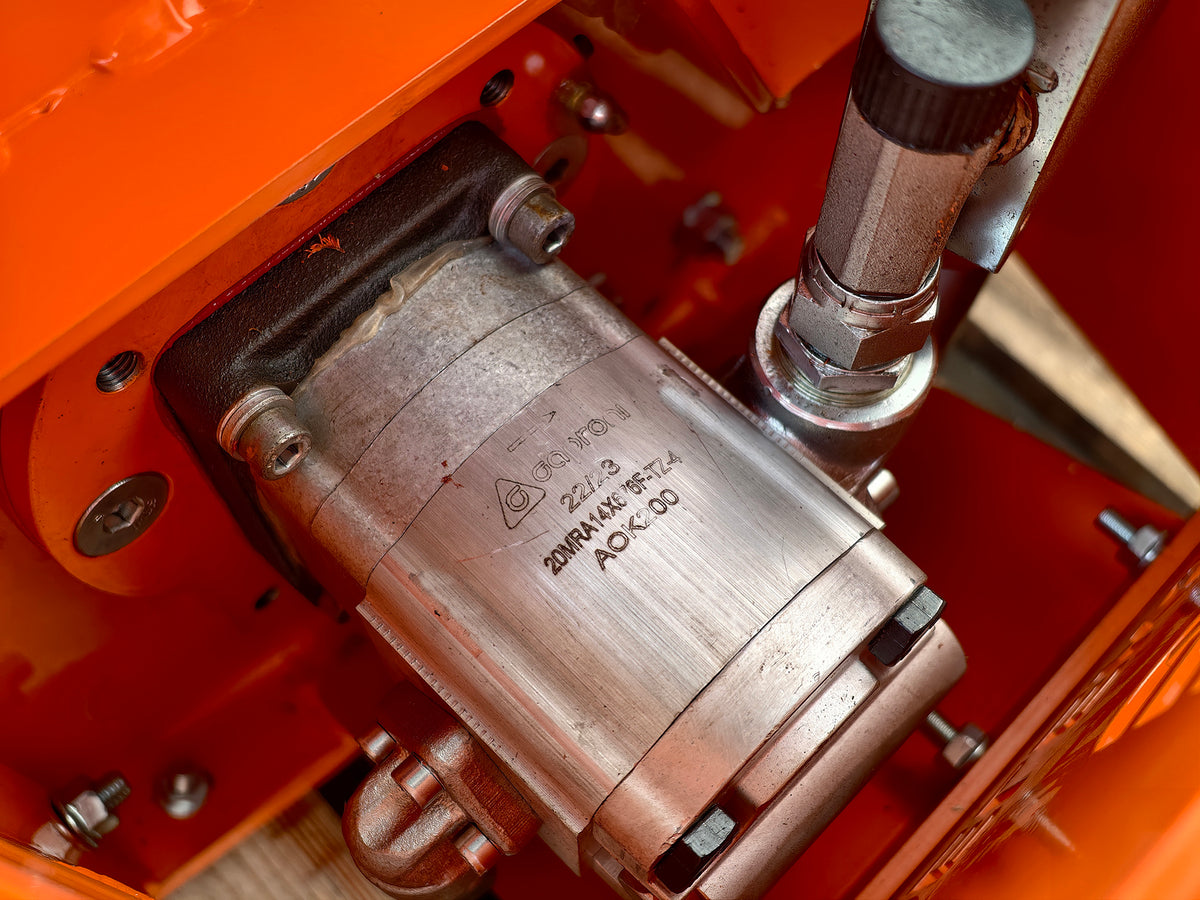

  • High-performance Caproni hydraulic motor
  • Reinforced rotor with HARDOX® wear-resistant steel
  • Premium-quality hammers (Poncial)

Features
  • Excavator-mounted design with suspension linkage
  • Adjustable rear roller and skid shoes for cutting height control
  • Built for demanding vegetation management applications
Cutting Capacity
  • Handles grass, brush, and small trees
  • Maximum cutting diameter: 1.6 in
Recommendation
  • Hydraulic oil cooling system recommended for continuous operation
Advantages
Equipment
Machine Requirements
  • Recommended carrier equipped with a dual hydraulic pump system:
    One pump for machine travel (tracks) One dedicated pump for auxiliary hydraulics
  • Required hydraulic flow: 5.3 – 26.4 GPM
Characteristics
Characteristic Units (US / Imperial)
Working Width 31.5 in
Overall Width 46.0 in
Cutting Height (Min–Max) 0.3 – 2.3 in
Weight 474 lbs
Hood Height 25.6 in
Hammer Count 12
Maximum Cutting Capacity 1.6 in
Main Housing Thickness 0.20 in
Rotor Diameter 4.5 in
Rotor Bearings SKF 2210
Rotor Wall Thickness 0.39 in

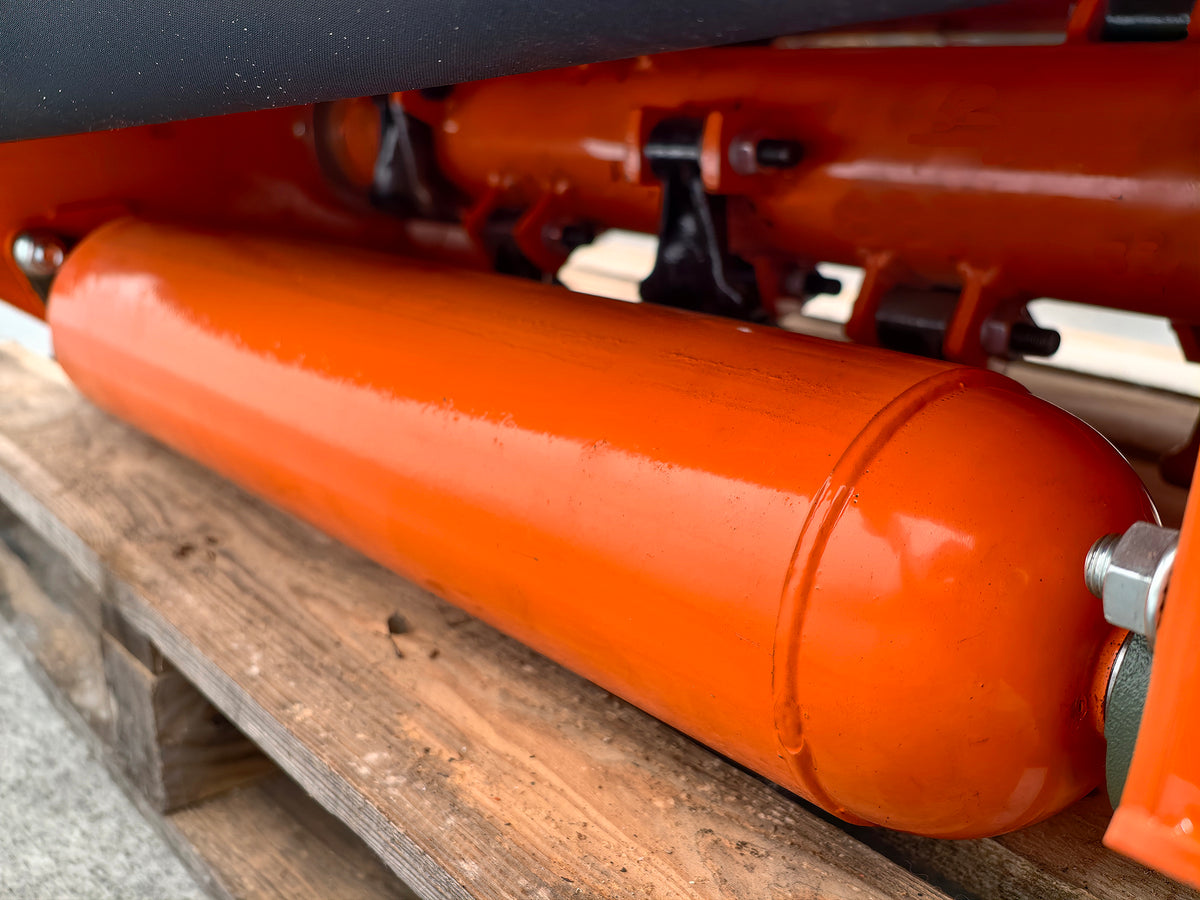

Rear Roller Diameter 5.5 in
Rear Roller Bearings UCFL206
Hydraulic Flow Requirement 5.3 – 26.4 GPM
Hood Length 26.8 in
Working Pressure 2,900 psi
Shipping Dimensions (L × W × H) 47.2 × 31.5 × 23.6 in
