Code EL300 EAN 8053470239588

Hydraulic Crane for Tractors

$412

Free shipping within the US

Out of stock

Product description

Hydraulic Crane For Compact Tractors KUBOTA, JOHN DEERE… DELEKS®- Arm can be extended in three steps.

Free shipping

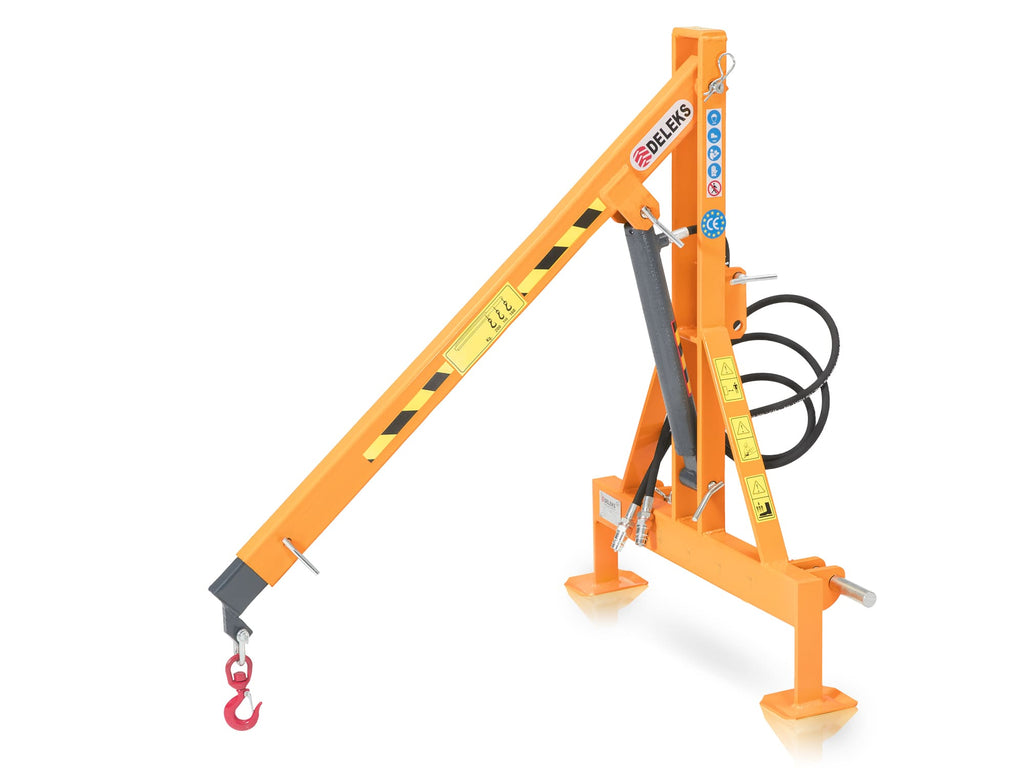

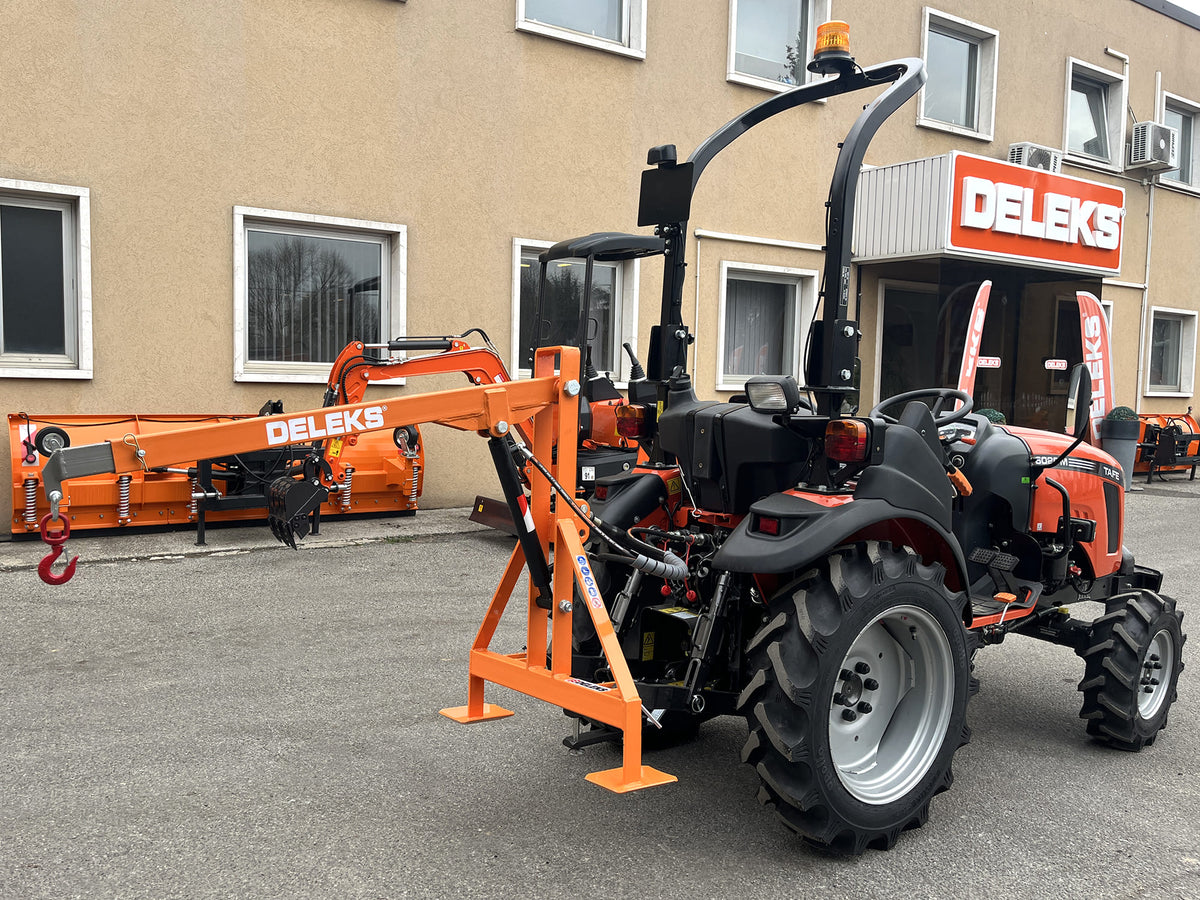

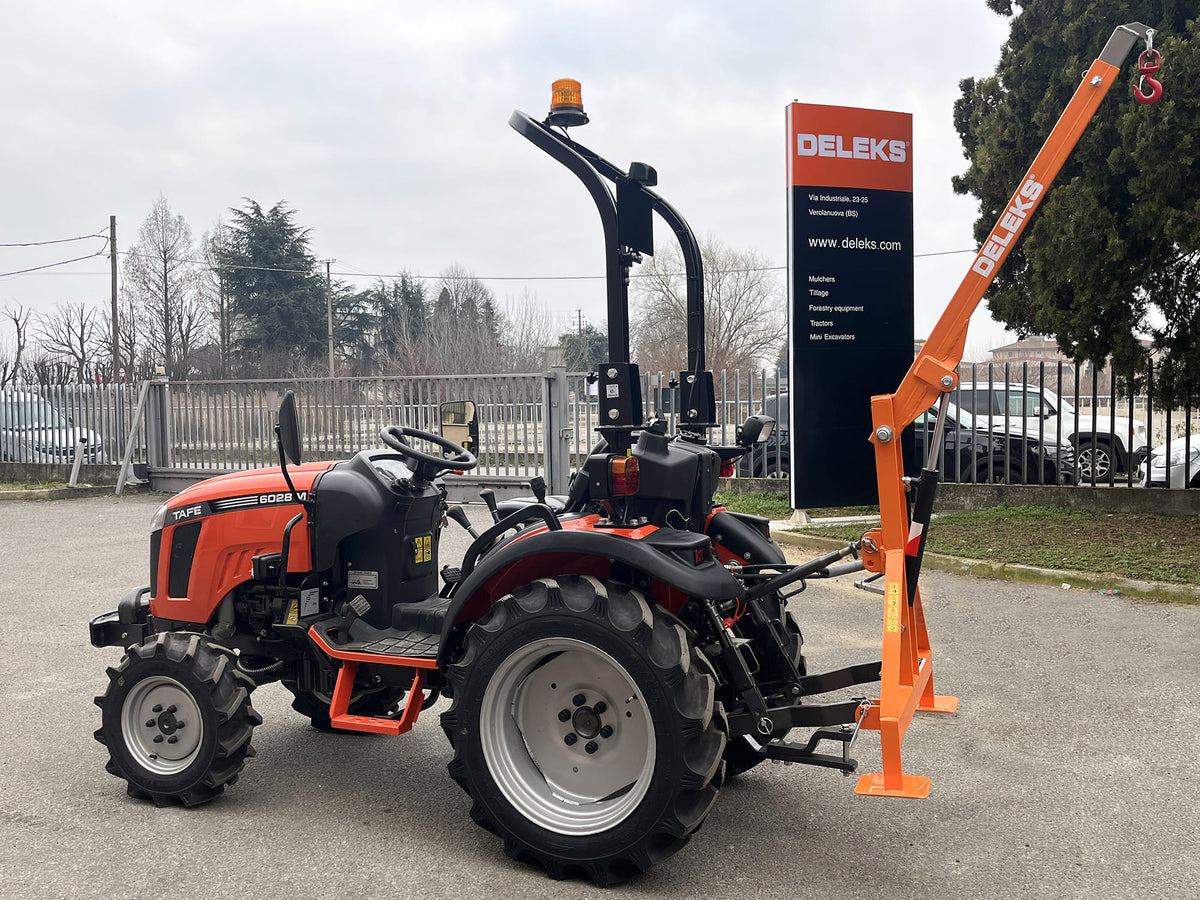

The EL-300 hydraulic Crane has a robust and durable steel construction. Ideal for hydraulically operated lifting at the rear of the tractor. It has a maximum loading capacity of more than 200kg.

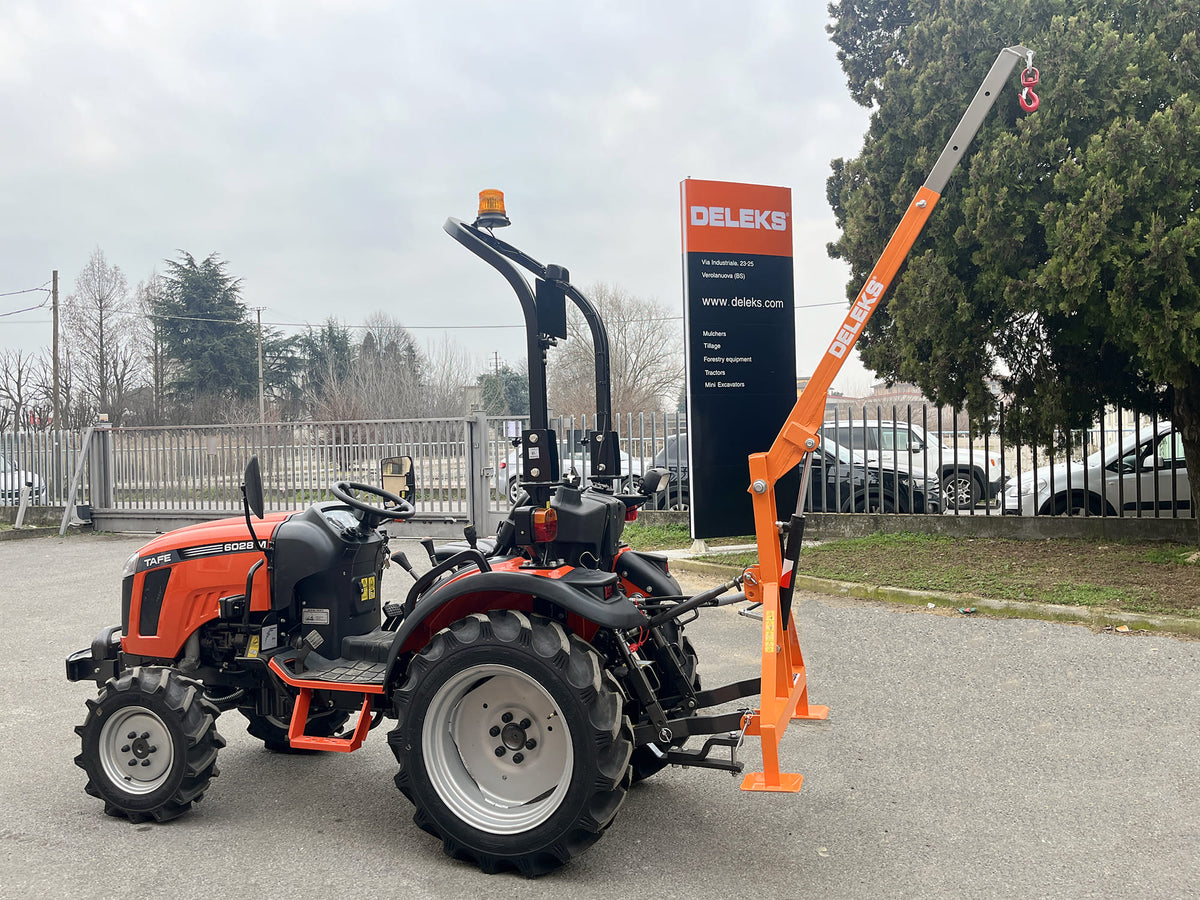

Designed to fit most Cat 1 tractors 16-45HP e.g New Holland Boomer 25-30 or TI13, John Deere 1-2 Series, or Japanese tractors e.g. Kubota B and BX, Iseki TM–TH, Yanmar, etc. EC Conformity, 2 Year warranty.

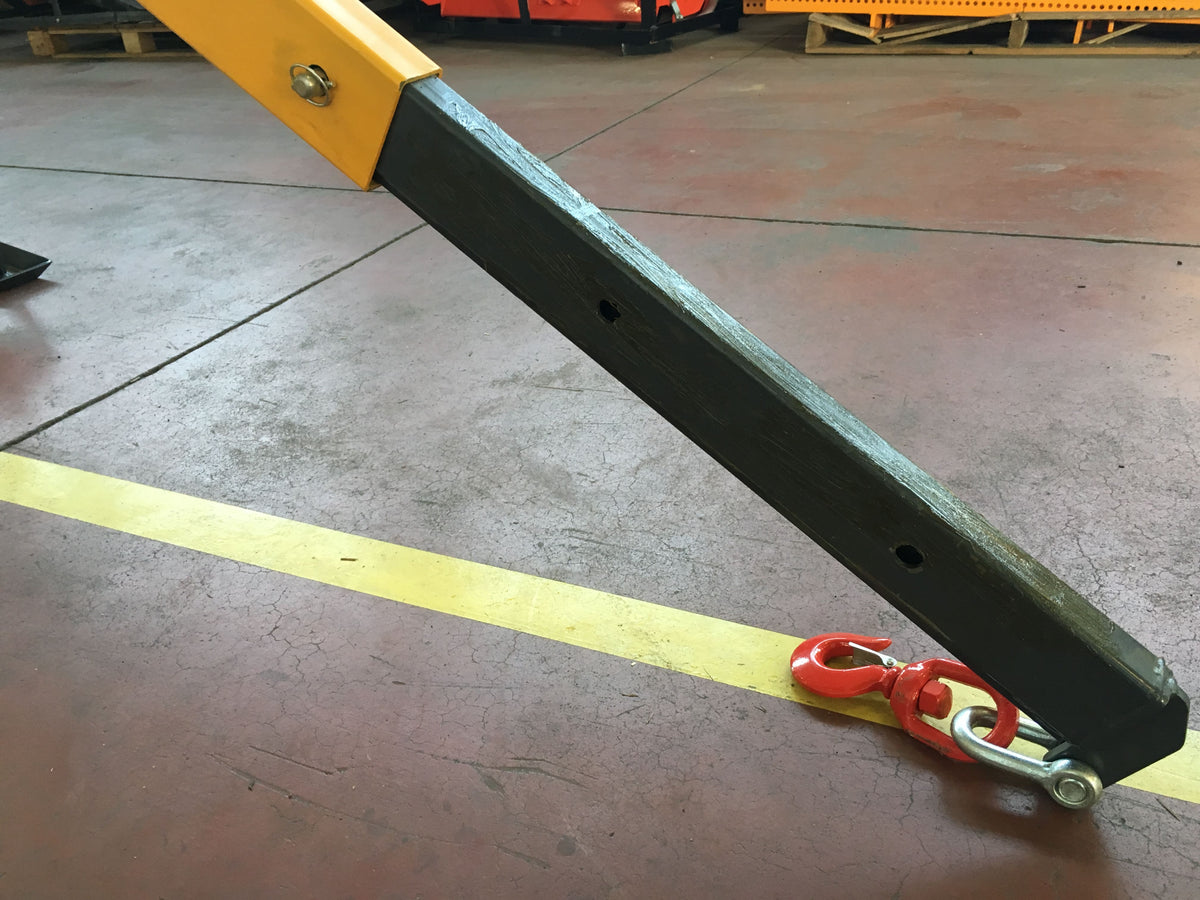

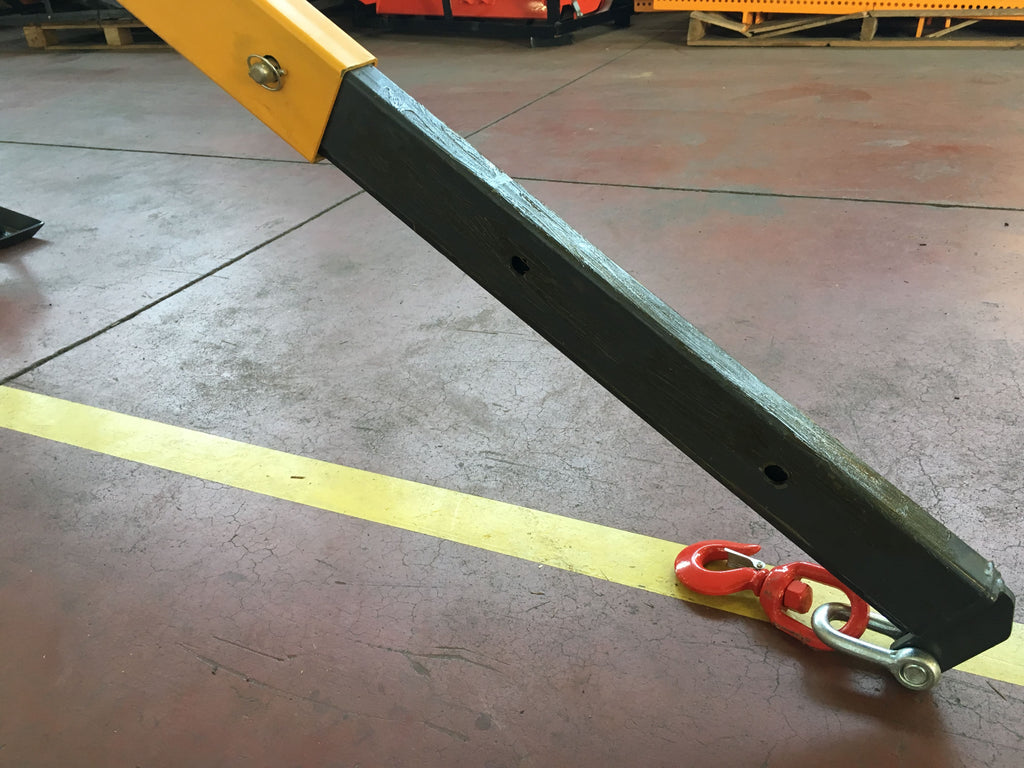

Arm can be extended in three steps.

Simple to use and can be easily stored when not in use.

Reinforced at all stress points.

Lateral reinforcement to withstand heavy loading.

The clamp hook tip provides extra security.

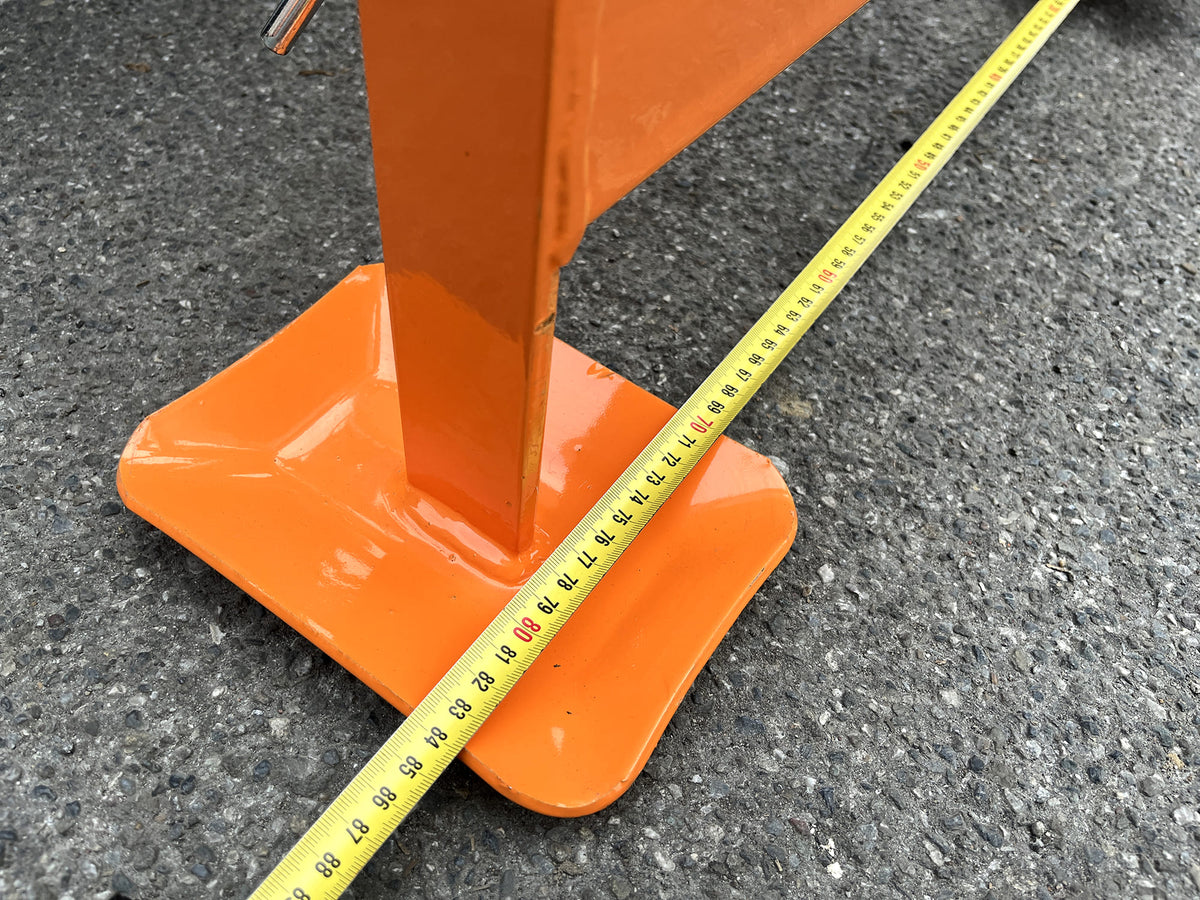

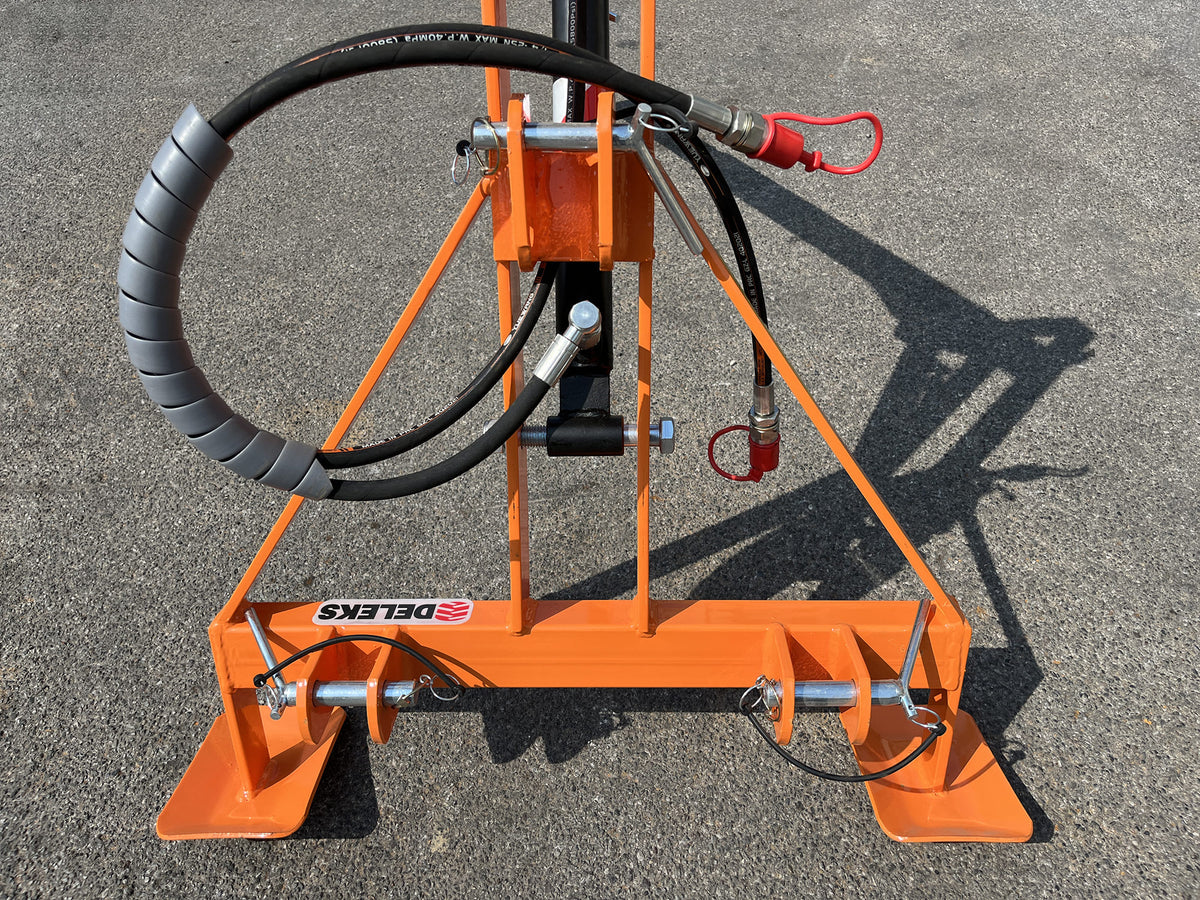

The support feet offer more stability.

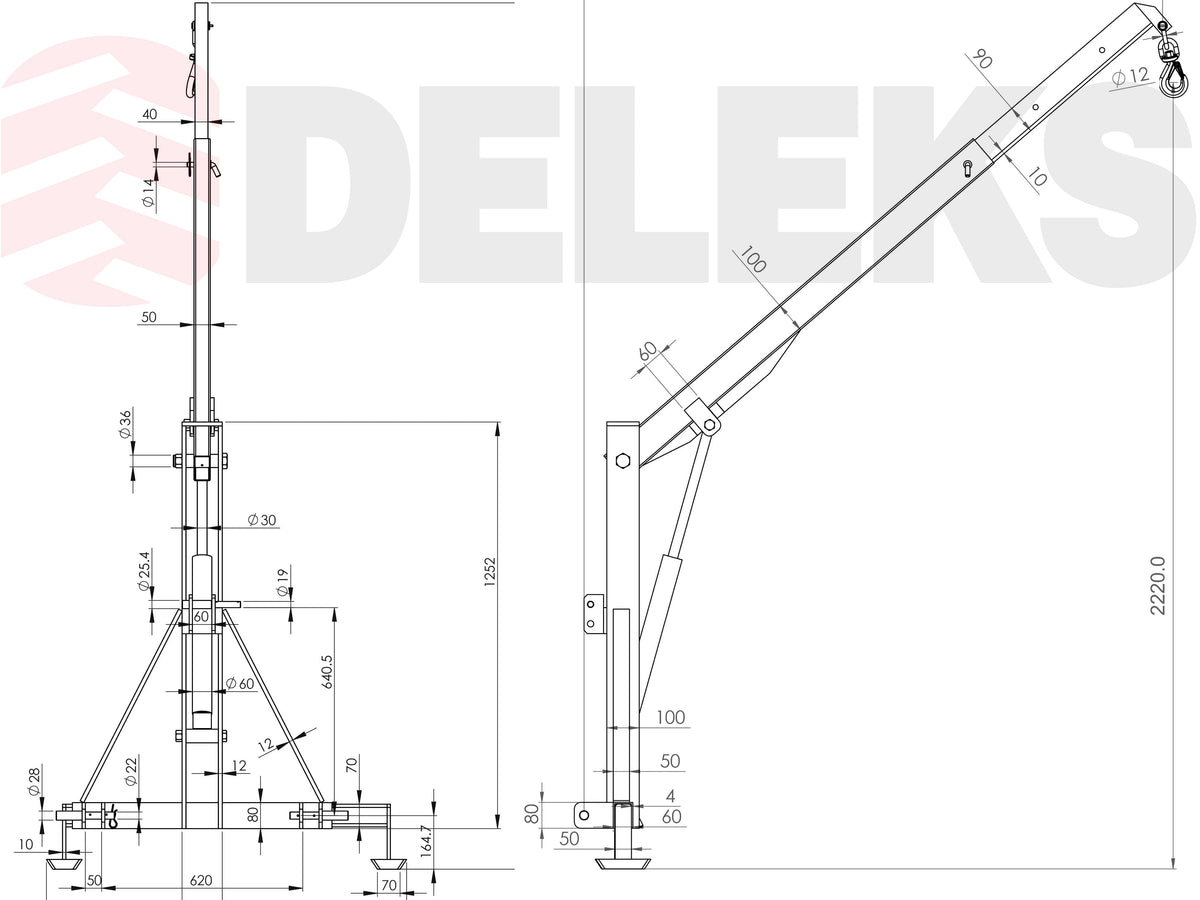

Characteristic	Units imperial
Overall width	33.1 in
Weight	105.8 lbs
Tractor Power Range	16 - 45 Hp
3 point linkage	Cat. 1 (ø 0.7 - 0.9 in)
Spacing between the 2 lower points	14.4 - 18.3 in

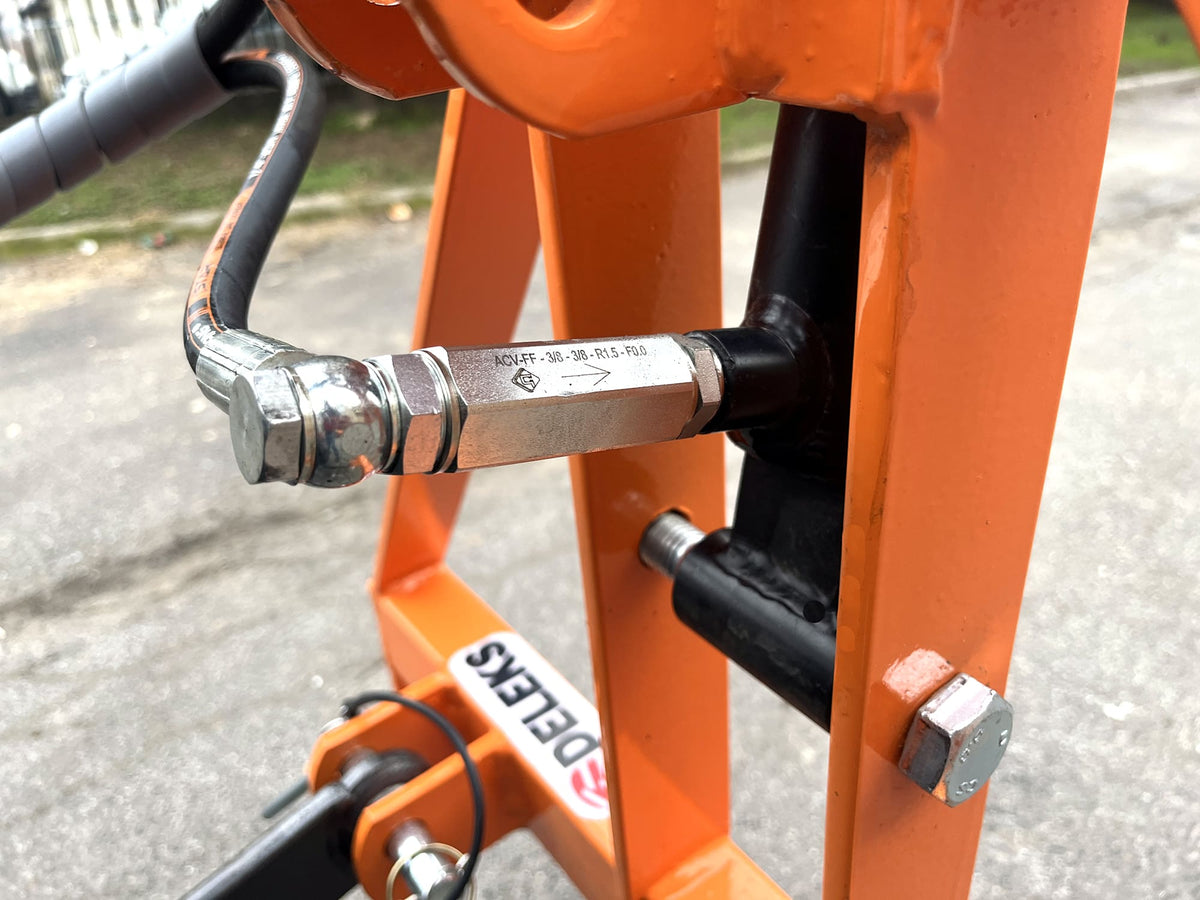

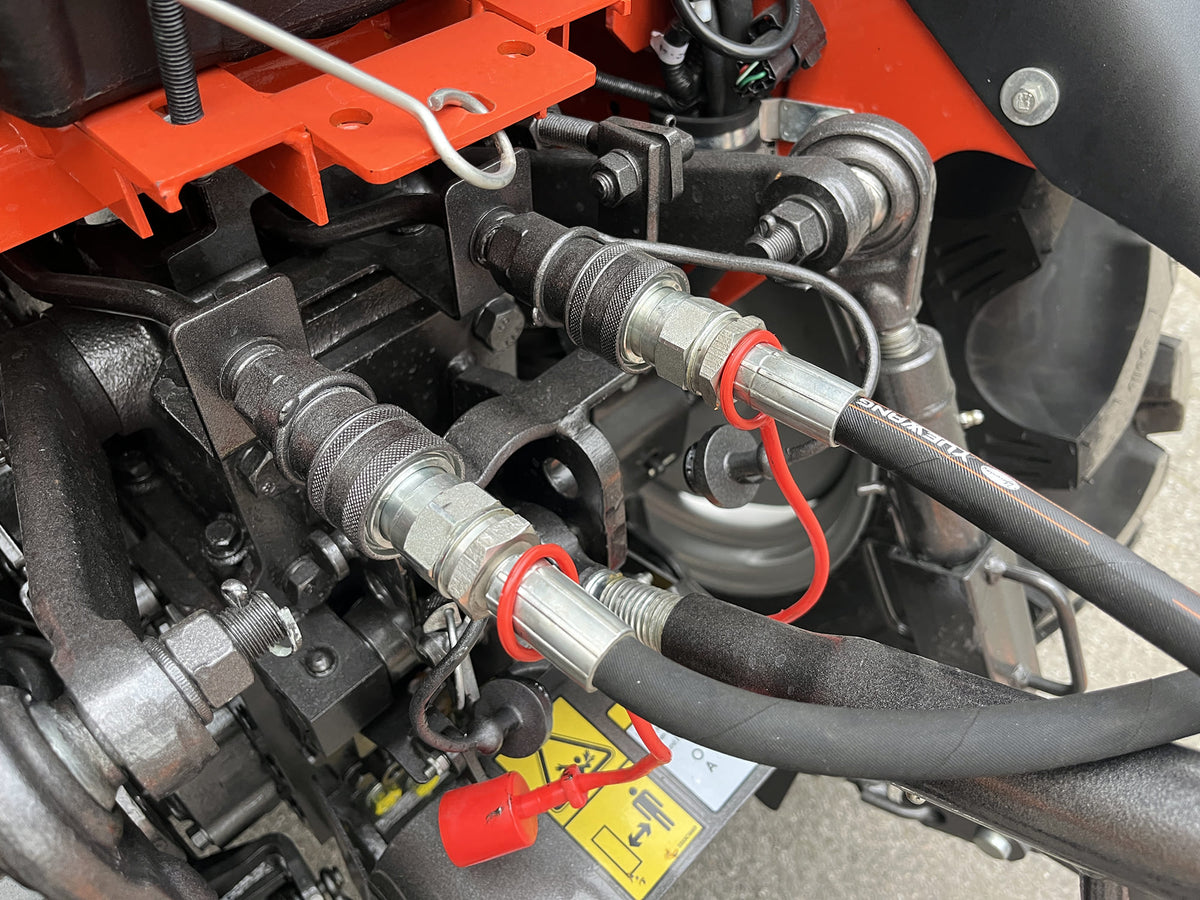

Hydraulic Pipes (2)	59.1 in / connections 1.2" AGRI, WP-5801.5 psi
Hydraulic cylinder ø	2.0 - 1.0 in
3 point Linckage Thickness	0.4 in
Max Load Rating	440.9 lbs
Max height lift	82.7 in + tractor lift
Extended Length	64.6 in
Retracted Length	48.8 in
Number of Arm-Adjustments	3

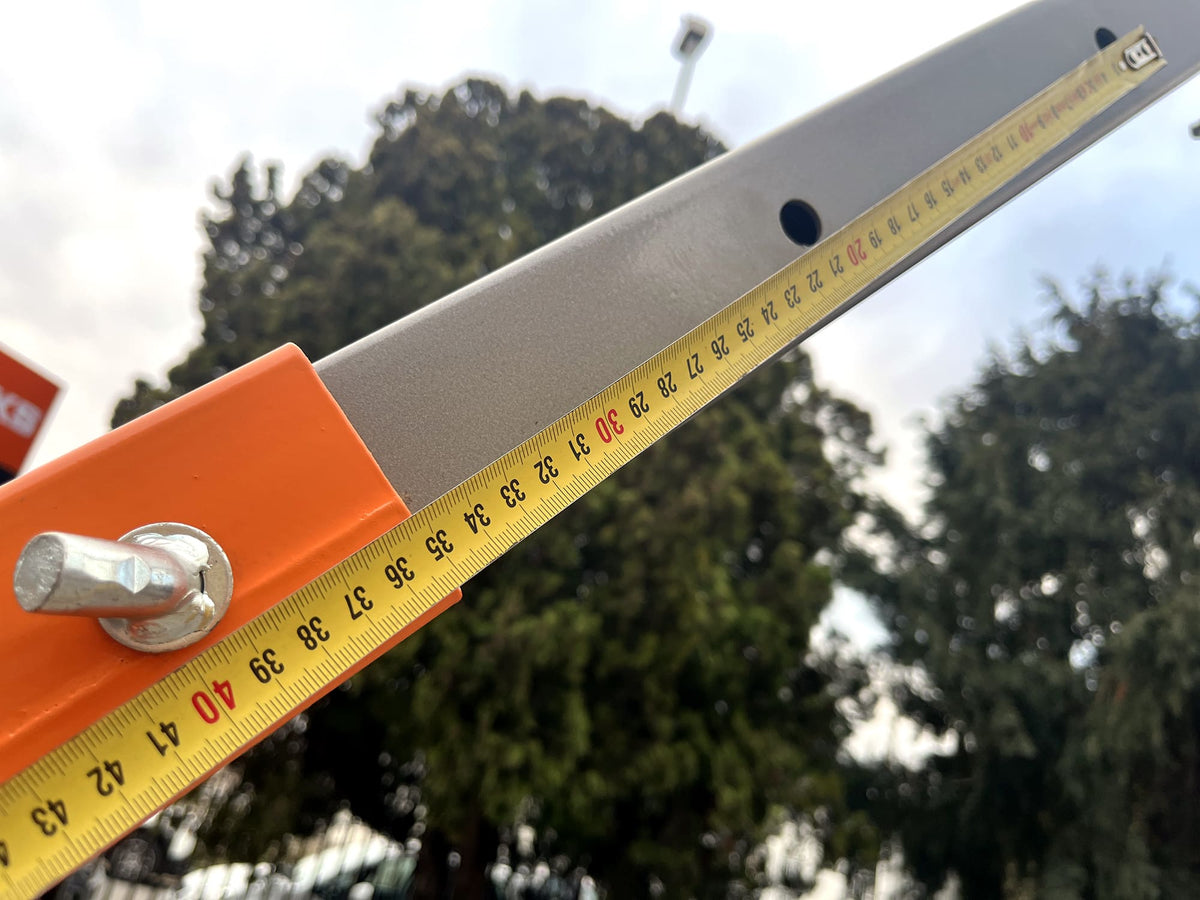

Distance Between Arm-Adjustments	7.9 in
Overall Height (Arm down)	43.3 in
External arm sizes	3.1 × 1.6 in
External arm thickness	0.2 in
Internal arm thickness	0.2 in
Min./Max. Relief Pressure	870.2 - 1160.3 psi
Min./Max. Flow	4.8 - 5.8 gpm
Packing sizes	43.3 × 30.7 × 15.7 in

DELEKS Hydraulic crane for small tractors EL-300
